Zigbee3.0 RGBCCT GU10 LED Spotlight

LM080Z is a GU10 base smart Spotlight, using the advanced technology of Zigbee3.0.It is compatible with the most well-known brand speakers, such as Alexa and googles assistant. It can be controlled by a smartphone APP, RF remote, and smart speaker, which makes your light more intelligent. This smart Spotlight is widely used for residential lighting such as living rooms, kitchen rooms, and commercial lighting like hotels..

Zigbee3.0 RGBCCT LED Spotlight Features:

1.Zigbee RGBCCT LED Spotlight is the most popular smart lighting that is mainly used for smart home and hotel. It has below major features:

2.Instructions

Put the light bulb in the suitable lighting fixture.

3.Connect to Smartphone

You must link the Tuya Zigbee 3.0 Gateway first to the smartphone, then add the Zigbee downlight to Zigbee gateway for smartphone control.

How to connect zigbee gateway to smartphone.(Note: All Tuya Zigbee 3.0 gateway in the market can work on our Zigbee controller; Here we use our Zigbee 3.0 gateway for example).

First, Power the Zigbee gateway, and long press the “SET” button until the red indicating lamp blinking.

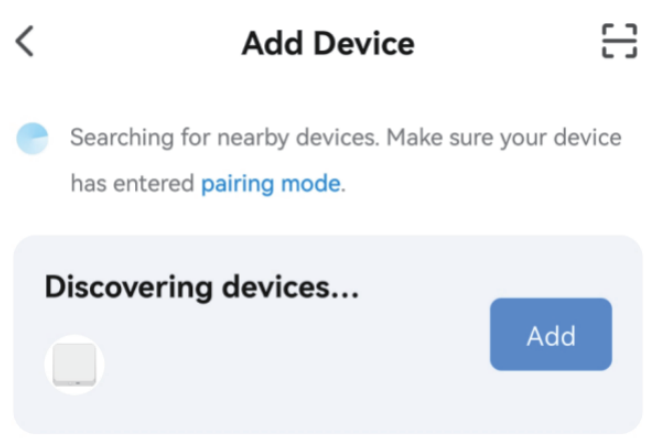

Second, when the red indicating lamp blink, open the Smart Life APP, and press “Add Device”.

It will discover the new device automatically, then Press “Add” to complete the linking.

(1)Add the Zigbee downlight to the linked zigbee gateway.

First, power ON-OFF 3 times(ON-OFF-ON-OFF-ON) or long-press linked remote zone ON button, when the purple light blinks 3 times means the downlight comes into smart link mode.

(Note: when the downlight is on the smart link mode, please finish the linking within 3 minutes, after 3 minutes the downlight will stop smart link mode, you need to do the above steps again).

Second, Press ”Add new devices” on the APP, it will automatically find the Zigbee device, then complete the linking. The added device will be displayed on the homepage after being added successfully, then Click the device you want to control to enter the control interface.

4. Signal Transmitting

One Downlight can transmit the signals from the remote control to another Downlight within 30m,as long as there is a Downlight within 30m, the remote control distance can be limitless.

5. Modes Synchronization

Different downlights can work synchronously when they are started at different times, controlled by the same remote, under the same dynamic mode, and within a 30m distance.

As is seen above, the Zigbee3.0 Smart LED Spotlight is the most intelligent lighting, which combines multiple functions and is easily integrated into the smart home control system. It will be used for more and more lighting projects.
